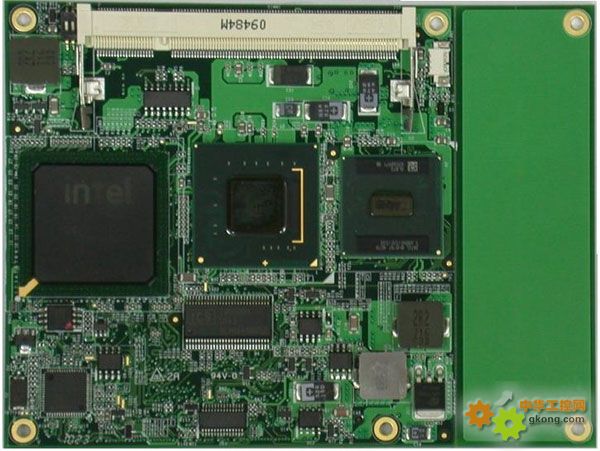

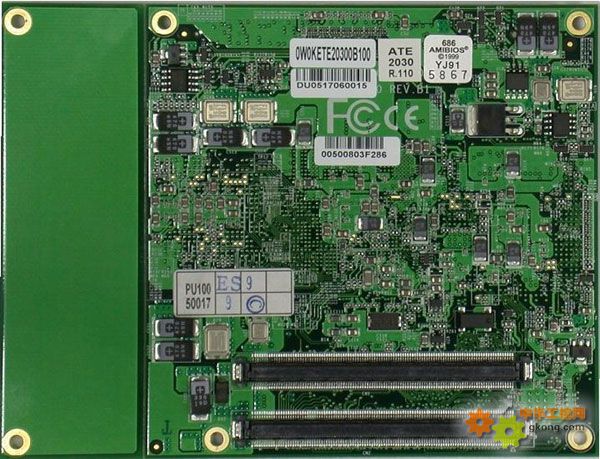

Intel® Atom™ N270 COM-Express CPU Module
主要特性
- Intel® Atom™ N270 1.6 GHz processor with low power consumption
- Intel® 945GSE+ ICH7M
- Intel® GMA950, Microsoft DirectX 9.1
- Intel® 10/100/1000 Mbps LAN
- Supports 4x PCIe x 1 ,2x SATA, 8x USB2.0, 4x Digital I/Os
- COM-Express form factor, 95mm x 95mm (reserved for 95mm x 125mm)
產品介紹
The KETE-2030 is a PICMG COM Express™ form factor computer-on-module combining the high performance and low power consumption of the Intel® Atom™ N270 1.6 GHz processor, Intel® 945GSE and ICH7M. The KETE-2030 features up to 533MHz FSB, and 1x DDR2SO-DIMM slots for up to a maximum of 2GB. The KETE-2030 is fully compliant with the PICMG COM Express Specification.This computer-on-module features 4x PCI Express x1 and 32-bit/33MHz external PCI bus, 2x SATA ports, USB 2.0, LPC bus, 18-bit dual channel LVDS and HD audio. The flexibility of the COM Express™ computer-on-module concept allows the baseboard designer to optimize how each of these functions is physically implemented.
