Fan-less Box PC with Intel® Atom N270 Processor
主要特性
· Fan-less design and compact size
· 3.5” embedded SBC
Intel® Atom Processor N270
Intel® 945GSE / ICH7-M, DDR2-533 SO-DIMM up to 2 GB
· USB 2.0, GbE, COM, DVI-I, AC’97 Audio
· 1x 2.5" SATA hard drive bay
· Rugged aluminum chassis with integrated cooling solution
產品介紹

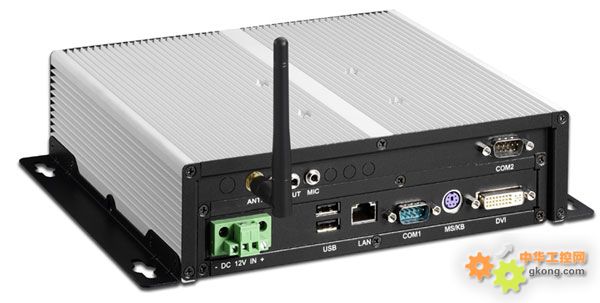

The QDSP-2020 is a compact Fanless Box PC ideal for space critical applications. This embedded hardware platform is based on a 3.5” industrial SBC with Intel® Atom N270 Processor, 945GSE/ ICH7-M chipset, and DDR2 533 SO-DIMM up to 2 GB. Featured are a 2.5” SATA hard drive bay, Internal Compact Flash Type II slot, DVI-I, USB 2.0, COM, and PS/2 KB/MS. The QDSP-2020 provides high reliability for harsh environments, compact size, noiseless operation and is highly suited to a wide range of industrial applications such as Digital Signage, Gaming, Transportation, Surveillance, and Thin Servers.
